The Compact Mode Screen (Client + AP Mode)

From the compact mode screen in Client and AP Mode, use the Mediatek Utility to set up an access point (AP) which can access other wireless networks and the Internet, and control access to the AP based on MAC address.

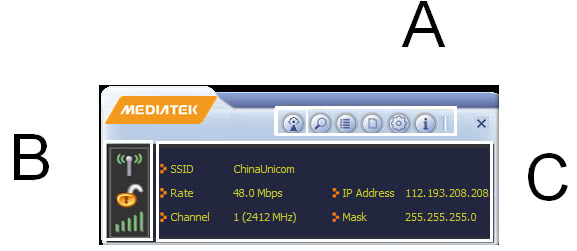

The Mediatek Utility in compact mode shows the connection status of the Mediatek Adapter.

A Click these buttons to open the following screens.

- Use the AP screens to set up a network and find the MAC address of network members.

- Use the Available Networks screen to connect to available networks.

- Use the Link Information screens to find detailed information on the status of your wireless connection.

- Use the Profile Settings screens to set up and use profiles to more quickly connect using frequently used settings, and to set up wireless security.

- Use the Advanced screen  to select your region code, and to install WAPI certificates.

- Use the About screen to find version information for your Utility.

B The Utility also provides information and tools to manage your wireless connection.

- Click the RF buttons to enable or disable wireless transmission.

- Indicates the security status of your connection.

- Indicates the quality of your wireless connection.

C Provides information on network settings.

• SSID: This shows the name of your network.
• Rate: This shows the speed of your connection.
• Channel: This is the channel assigned to your connection. Change this if interference is a problem on your network.
• IP Address: This identifies the Mediatek Adapter on your wireless network, much like a physical mailing address identifies a house on a street.
• Mask: The subnet mask hides your IP address from outside your wireless network.
