The Compact Mode Screen (AP Mode)

From the compact mode screen in AP Mode, use the Mediatek Utility to set up an access point (AP), control access to the AP based on MAC address.

The Mediatek Utility in compact mode shows the AP status of the Mediatek Adapter.

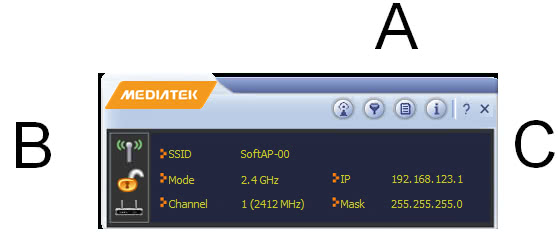

A Click these buttons to open the following screens.

- Use the AP Setup screen to set up a secure wireless network.

- Use the Access Control List screen to configure an access policy for your network based on a client's MAC address.

- Use the Connected Devices screen to find information on clients currently connected to your network.

- Use the About screen to find information on specifications for the Mediatek Utility.

B The Utility also provides information and tools to manage your wireless connection.

- Click the RF buttons to enable or disable wireless transmission.

- Indicates the security status of your connection.

- Indicates AP Mode is enabled.

C Provides information on network settings.

• SSID: This displays the name of your wireless network
• Mode: Indicates the mode and hence frequency supported by your wireless connection.
• Channel: The channel assigned to your connection. Default is 6, options are 1-12.
• IP: The IP address identifies your Adapter on your wireless network.
• Mask: The subnet mask hides your IP address from outside your wireless network.
