Virtual Private Networks (VPNs)

Organizations with several satellite offices often connect to each other with dedicated lines for efficiency and protection of sensitive data in transit. For example, many businesses use frame relay or Asynchronous Transfer Mode (ATM) lines as an end-to-end networking solution to link one office with others. This can be an expensive proposition, especially for small to medium sized businesses (SMBs) that want to expand without paying the high costs associated with enterprise-level, dedicated digital circuits.

To address this need, Virtual Private Networks (VPNs) were developed. Following the same functional principles as dedicated circuits, VPNs allow for secured digital communication between two parties (or networks), creating a Wide Area Network (WAN) from existing Local Area Networks (LANs). Where it differs from frame relay or ATM is in its transport medium. VPNs transmit over IP using datagrams as the transport layer, making it a secure conduit through the Internet to an intended destination. Most free software VPN implementations incorporate open standard encryption methods to further mask data in transit.

Some organizations employ hardware VPN solutions to augment security, while others use software or protocol-based implementations. Several vendors provide hardware VPN solutions, such as Cisco, Nortel, IBM, and Checkpoint. There is a free software-based VPN solution for Linux called FreeS/Wan that utilizes a standardized Internet Protocol Security (IPsec) implementation. These VPN solutions, irrespective of whether they are hardware or software based, act as specialized routers that exist between the IP connection from one office to another.

How Does a VPN Work?

When a packet is transmitted from a client, it sends it through the VPN router or gateway, which adds an Authentication Header (AH) for routing and authentication. The data is then encrypted and, finally, enclosed with an Encapsulating Security Payload (ESP). This latter constitutes the decryption and handling instructions.

The receiving VPN router strips the header information, decrypts the data, and routes it to its intended destination (either a workstation or other node on a network). Using a network-to-network connection, the receiving node on the local network receives the packets already decrypted and ready for processing. The encryption/decryption process in a network-to-network VPN connection is transparent to a local node.

With such a heightened level of security, an attacker must not only intercept a packet, but decrypt the packet as well. Intruders who employ a man-in-the-middle attack between a server and client must also have access to at least one of the private keys for authenticating sessions. Because they employ several layers of authentication and encryption, VPNs are a secure and effective means of connecting multiple remote nodes to act as a unified intranet.

VPNs and Community Enterprise Linux

Community Enterprise Linux provides various options in terms of implementing a software solution to securely connect to a WAN. Internet Protocol Security (IPsec) is the supported VPN implementation for Community Enterprise Linux, and sufficiently addresses the usability needs of organizations with branch offices or remote users.

IPsec

Community Enterprise Linux supports IPsec for connecting remote hosts and networks to each other using a secure tunnel on a common carrier network such as the Internet. IPsec can be implemented using a host-to-host (one computer workstation to another) or network-to-network (one LAN/WAN to another) configuration.

The IPsec implementation in Community Enterprise Linux uses Internet Key Exchange (IKE), a protocol implemented by the Internet Engineering Task Force (IETF), used for mutual authentication and secure associations between connecting systems.

Creating an IPsec Connection

An IPsec connection is split into two logical phases. In phase 1, an IPsec node initializes the connection with the remote node or network. The remote node or network checks the requesting node's credentials and both parties negotiate the authentication method for the connection.

On Community Enterprise Linux systems, an IPsec connection uses the pre-shared key method of IPsec node authentication. In a pre-shared key IPsec connection, both hosts must use the same key in order to move to Phase 2 of the IPsec connection.

Phase 2 of the IPsec connection is where the Security Association (SA) is created between IPsec nodes. This phase establishes an SA database with configuration information, such as the encryption method, secret session key exchange parameters, and more. This phase manages the actual IPsec connection between remote nodes and networks.

The Community Enterprise Linux implementation of IPsec uses IKE for sharing keys between hosts across the Internet. The racoon keying daemon handles the IKE key distribution and exchange. Refer to the racoon man page for more information about this daemon.

IPsec Installation

Implementing IPsec requires that the ipsec-tools RPM package be installed on all IPsec hosts (if using a host-to-host configuration) or routers (if using a network-to-network configuration). The RPM package contains essential libraries, daemons, and configuration files for setting up the IPsec connection, including:

To configure IPsec on Community Enterprise Linux, you can use the Network Administration Tool, or manually edit the networking and IPsec configuration files.

IPsec Host-to-Host Configuration

IPsec can be configured to connect one desktop or workstation (host) to another using a host-to-host connection. This type of connection uses the network to which each host is connected to create a secure tunnel between each host. The requirements of a host-to-host connection are minimal, as is the configuration of IPsec on each host. The hosts need only a dedicated connection to a carrier network (such as the Internet) and Community Enterprise Linux to create the IPsec connection.

Host-to-Host Connection

A host-to-host IPsec connection is an encrypted connection between two systems, both running IPsec with the same authentication key. With the IPsec connection active, any network traffic between the two hosts is encrypted.

To configure a host-to-host IPsec connection, use the following steps for each host:

You should perform the following procedures on the actual machine that you are configuring. Avoid attempting to configure and establish IPsec connections remotely.

  1. In a command shell, type system-config-network to start the Network Administration Tool.

If automatic encryption is selected, /etc/racoon/racoon.conf is also created.

When the interface is up, /etc/racoon/racoon.conf is modified to include <remote-ip>.conf.

Manual IPsec Host-to-Host Configuration

The first step in creating a connection is to gather system and network information from each workstation. For a host-to-host connection, you need the following:

For example, suppose Workstation A and Workstation B want to connect to each other through an IPsec tunnel. They want to connect using a pre-shared key with the value of Key_Value01, and the users agree to let racoon automatically generate and share an authentication key between each host. Both host users decide to name their connections ipsec1.

You should choose a PSK that uses a mixture of upper- and lower-case characters, numbers and punctuation. An easily-guessable PSK constitutes a security risk.

It is not necessary to use the same connection name for each host. You should choose a name that is convenient and meaningful for your installation.

The following is the IPsec configuration file for Workstation A for a host-to-host IPsec connection with Workstation B. The unique name to identify the connection in this example is ipsec1, so the resulting file is called /etc/sysconfig/network-scripts/ifcfg-ipsec1.

DST=X.X.X.X
TYPE=IPSEC
ONBOOT=no
IKE_METHOD=PSK

For Workstation A, X.X.X.X is the IP address of Workstation B. For Workstation B, X.X.X.X is the IP address of Workstation A. This connection is not set to initiate on boot-up (ONBOOT=no) and it uses the pre-shared key method of authentication (IKE_METHOD=PSK).

The following is the content of the pre-shared key file (called /etc/sysconfig/network-scripts/keys-ipsec1) that both workstations need to authenticate each other. The contents of this file should be identical on both workstations, and only the root user should be able to read or write this file.

IKE_PSK=Key_Value01

To change the keys-ipsec1 file so that only the root user can read or edit the file, use the following command after creating the file:

chmod 600 /etc/sysconfig/network-scripts/keys-ipsec1

To change the authentication key at any time, edit the keys-ipsec1 file on both workstations. Both authentication keys must be identical for proper connectivity.

The next example shows the specific configuration for the phase 1 connection to the remote host. The file is called X.X.X.X.conf, where X.X.X.X is the IP address of the remote IPsec host. Note that this file is automatically generated when the IPsec tunnel is activated and should not be edited directly.

remote X.X.X.X
{
         exchange_mode aggressive, main;
  my_identifier address;
  proposal {
   encryption_algorithm 3des;
  hash_algorithm sha1;
  authentication_method pre_shared_key;
  dh_group 2 ;
 }
}

The default phase 1 configuration file that is created when an IPsec connection is initialized contains the following statements used by the Community Enterprise Linux implementation of IPsec:

remote X.X.X.X

Specifies that the subsequent stanzas of this configuration file apply only to the remote node identified by the X.X.X.X IP address.

exchange_mode aggressive

The default configuration for IPsec on Community Enterprise Linux uses an aggressive authentication mode, which lowers the connection overhead while allowing configuration of several IPsec connections with multiple hosts.

my_identifier address

Specifies the identification method to use when authenticating nodes. Community Enterprise Linux uses IP addresses to identify nodes.

encryption_algorithm 3des

Specifies the encryption cipher used during authentication. By default, Triple Data Encryption Standard (3DES) is used.

hash_algorithm sha1;

Specifies the hash algorithm used during phase 1 negotiation between nodes. By default, Secure Hash Algorithm version 1 is used.

authentication_method pre_shared_key

Specifies the authentication method used during node negotiation. By default, Community Enterprise Linux uses pre-shared keys for authentication.

dh_group 2

Specifies the Diffie-Hellman group number for establishing dynamically-generated session keys. By default, modp1024 (group 2) is used.

The Racoon Configuration File

The /etc/racoon/racoon.conf files should be identical on all IPsec nodes except for the include "/etc/racoon/X.X.X.X.conf" statement. This statement (and the file it references) is generated when the IPsec tunnel is activated. For Workstation A, the X.X.X.X in the include statement is Workstation B's IP address. The opposite is true of Workstation B. The following shows a typical racoon.conf file when the IPsec connection is activated.

# Racoon IKE daemon configuration file.
# See 'man racoon.conf' for a description of the format and entries.
path include "/etc/racoon";
path pre_shared_key "/etc/racoon/psk.txt";
path certificate "/etc/racoon/certs";
sainfo anonymous
{
        pfs_group 2;
        lifetime time 1 hour ;
        encryption_algorithm 3des, blowfish 448, rijndael ;
        authentication_algorithm hmac_sha1, hmac_md5 ;
        compression_algorithm deflate ;
}
include "/etc/racoon/X.X.X.X.conf";

This default racoon.conf file includes defined paths for IPsec configuration, pre-shared key files, and certificates. The fields in sainfo anonymous describe the phase 2 SA between the IPsec nodes - the nature of the IPsec connection (including the supported encryption algorithms used) and the method of exchanging keys. The following list defines the fields of phase 2:

sainfo anonymous

Denotes that SA can anonymously initialize with any peer provided that the IPsec credentials match.

pfs_group 2

Defines the Diffie-Hellman key exchange protocol, which determines the method by which the IPsec nodes establish a mutual temporary session key for the second phase of IPsec connectivity. By default, the Community Enterprise Linux implementation of IPsec uses group 2 (or modp1024) of the Diffie-Hellman cryptographic key exchange groups. Group 2 uses a 1024-bit modular exponentiation that prevents attackers from decrypting previous IPsec transmissions even if a private key is compromised.

lifetime time 1 hour

This parameter specifies the lifetime of an SA and can be quantified either by time or by bytes of data. The default Community Enterprise Linux implementation of IPsec specifies a one hour lifetime.

encryption_algorithm 3des, blowfish 448, rijndael

Specifies the supported encryption ciphers for phase 2. Community Enterprise Linux supports 3DES, 448-bit Blowfish, and Rijndael (the cipher used in the Advanced Encryption Standard, or AES).

authentication_algorithm hmac_sha1, hmac_md5

Lists the supported hash algorithms for authentication. Supported modes are sha1 and md5 hashed message authentication codes (HMAC).

compression_algorithm deflate

Defines the Deflate compression algorithm for IP Payload Compression (IPCOMP) support, which allows for potentially faster transmission of IP datagrams over slow connections.

To start the connection, use the following command on each host:

ifup <nickname>

where <nickname> is the name you specified for the IPsec connection.

To test the IPsec connection, run the tcpdump utility to view the network packets being transferred between the hosts and verify that they are encrypted via IPsec. The packet should include an AH header and should be shown as ESP packets. ESP means it is encrypted. For example:

~]# tcpdump -n -i eth0 host <targetSystem>
IP 172.16.45.107 > 172.16.44.192: AH(spi=0x0954ccb6,seq=0xbb): ESP(spi=0x0c9f2164,seq=0xbb)

IPsec Network-to-Network Configuration

IPsec can also be configured to connect an entire network (such as a LAN or WAN) to a remote network using a network-to-network connection. A network-to-network connection requires the setup of IPsec routers on each side of the connecting networks to transparently process and route information from one node on a LAN to a node on a remote LAN. shows a network-to-network IPsec tunneled connection.

A network-to-network IPsec tunneled connection

A network-to-network IPsec tunneled connection

Figure 46.11. A network-to-network IPsec tunneled connection

This diagram shows two separate LANs separated by the Internet. These LANs use IPsec routers to authenticate and initiate a connection using a secure tunnel through the Internet. Packets that are intercepted in transit would require brute-force decryption in order to crack the cipher protecting the packets between these LANs. The process of communicating from one node in the 192.168.1.0/24 IP range to another in the 192.168.2.0/24 range is completely transparent to the nodes as the processing, encryption/decryption, and routing of the IPsec packets are completely handled by the IPsec router.

The information needed for a network-to-network connection include:

Network-to-Network (VPN) Connection

A network-to-network IPsec connection uses two IPsec routers, one for each network, through which the network traffic for the private subnets is routed.

For example, as shown in , if the 192.168.1.0/24 private network sends network traffic to the 192.168.2.0/24 private network, the packets go through gateway0, to ipsec0, through the Internet, to ipsec1, to gateway1, and to the 192.168.2.0/24 subnet.

IPsec routers require publicly addressable IP addresses and a second Ethernet device connected to their respective private networks. Traffic only travels through an IPsec router if it is intended for another IPsec router with which it has an encrypted connection.

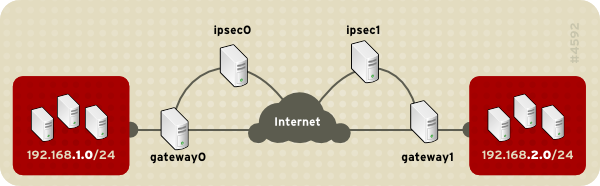

Network-to-Network IPsec

Network-to-Network IPsec

Figure 46.12. Network-to-Network IPsec

Alternate network configuration options include a firewall between each IP router and the Internet, and an intranet firewall between each IPsec router and subnet gateway. The IPsec router and the gateway for the subnet can be one system with two Ethernet devices: one with a public IP address that acts as the IPsec router; and one with a private IP address that acts as the gateway for the private subnet. Each IPsec router can use the gateway for its private network or a public gateway to send the packets to the other IPsec router.

Use the following procedure to configure a network-to-network IPsec connection:

  1. In a command shell, type system-config-network to start the Network Administration Tool.

Click Forward to continue.

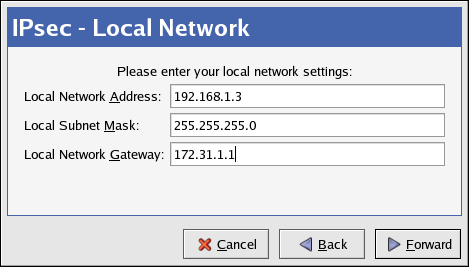

Local Network Information

Local Network Information

Figure 46.13. Local Network Information

Click Forward to continue.

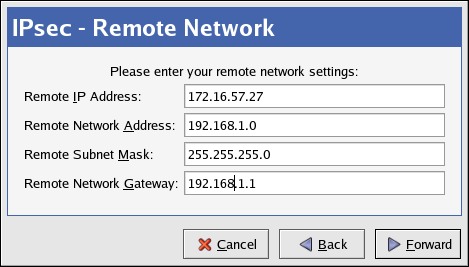

Remote Network Information

Remote Network Information

Figure 46.14. Remote Network Information

Manual IPsec Network-to-Network Configuration

Suppose LAN A (lana.example.com) and LAN B (lanb.example.com) want to connect to each other through an IPsec tunnel. The network address for LAN A is in the 192.168.1.0/24 range, while LAN B uses the 192.168.2.0/24 range. The gateway IP address is 192.168.1.254 for LAN A and 192.168.2.254 for LAN B. The IPsec routers are separate from each LAN gateway and use two network devices: eth0 is assigned to an externally-accessible static IP address which accesses the Internet, while eth1 acts as a routing point to process and transmit LAN packets from one network node to the remote network nodes.

The IPsec connection between each network uses a pre-shared key with the value of r3dh4tl1nux, and the administrators of A and B agree to let racoon automatically generate and share an authentication key between each IPsec router. The administrator of LAN A decides to name the IPsec connection ipsec0, while the administrator of LAN B names the IPsec connection ipsec1.

The following example shows the contents of the ifcfg file for a network-to-network IPsec connection for LAN A. The unique name to identify the connection in this example is ipsec0, so the resulting file is called /etc/sysconfig/network-scripts/ifcfg-ipsec0.

TYPE=IPSEC
ONBOOT=yes
IKE_METHOD=PSK
SRCGW=192.168.1.254
DSTGW=192.168.2.254
SRCNET=192.168.1.0/24
DSTNET=192.168.2.0/24
DST=X.X.X.X

The following list describes the contents of this file:

TYPE=IPSEC

Specifies the type of connection.

ONBOOT=yes

Specifies that the connection should initiate on boot-up.

IKE_METHOD=PSK

Specifies that the connection uses the pre-shared key method of authentication.

SRCGW=192.168.1.254

The IP address of the source gateway. For LAN A, this is the LAN A gateway, and for LAN B, the LAN B gateway.

DSTGW=192.168.2.254

The IP address of the destination gateway. For LAN A, this is the LAN B gateway, and for LAN B, the LAN A gateway.

SRCNET=192.168.1.0/24

Specifies the source network for the IPsec connection, which in this example is the network range for LAN A.

DSTNET=192.168.2.0/24

Specifies the destination network for the IPsec connection, which in this example is the network range for LAN B.

DST=X.X.X.X

The externally-accessible IP address of LAN B.

The following example is the content of the pre-shared key file called /etc/sysconfig/network-scripts/keys-ipsecX (where X is 0 for LAN A and 1 for LAN B) that both networks use to authenticate each other. The contents of this file should be identical and only the root user should be able to read or write this file.

IKE_PSK=r3dh4tl1nux

To change the keys-ipsecX file so that only the root user can read or edit the file, use the following command after creating the file:

chmod 600 /etc/sysconfig/network-scripts/keys-ipsec1

To change the authentication key at any time, edit the keys-ipsecX file on both IPsec routers. Both keys must be identical for proper connectivity.

The following example is the contents of the /etc/racoon/racoon.conf configuration file for the IPsec connection. Note that the include line at the bottom of the file is automatically generated and only appears if the IPsec tunnel is running.

# Racoon IKE daemon configuration file.
# See 'man racoon.conf' for a description of the format and entries.
path include "/etc/racoon";
path pre_shared_key "/etc/racoon/psk.txt";
path certificate "/etc/racoon/certs";
sainfo anonymous
{
 pfs_group 2;
 lifetime time 1 hour ;
 encryption_algorithm 3des, blowfish 448, rijndael ;
 authentication_algorithm hmac_sha1, hmac_md5 ;
 compression_algorithm deflate ;
}
include "/etc/racoon/X.X.X.X.conf"

The following is the specific configuration for the connection to the remote network. The file is called X.X.X.X.conf (where X.X.X.X is the IP address of the remote IPsec router). Note that this file is automatically generated when the IPsec tunnel is activated and should not be edited directly.

remote X.X.X.X
{
        exchange_mode aggressive, main;
 my_identifier address;
 proposal {
  encryption_algorithm 3des;
  hash_algorithm sha1;
  authentication_method pre_shared_key;
  dh_group 2 ;
 }
}

Prior to starting the IPsec connection, IP forwarding should be enabled in the kernel. To enable IP forwarding:

  1. Edit /etc/sysctl.conf and set net.ipv4.ip_forward to 1.
  • Use the following command to enable the change:
    sysctl -p /etc/sysctl.conf

    To start the IPsec connection, use the following command on each router:

    ifup ipsec0

    The connections are activated, and both LAN A and LAN B are able to communicate with each other. The routes are created automatically via the initialization script called by running ifup on the IPsec connection. To show a list of routes for the network, use the following command:

    ip route list

    To test the IPsec connection, run the tcpdump utility on the externally-routable device (eth0 in this example) to view the network packets being transferred between the hosts (or networks), and verify that they are encrypted via IPsec. For example, to check the IPsec connectivity of LAN A, use the following command:

    tcpdump -n -i eth0 host lana.example.com

    The packet should include an AH header and should be shown as ESP packets. ESP means it is encrypted. For example (back slashes denote a continuation of one line):

    12:24:26.155529 lanb.example.com > lana.example.com: AH(spi=0x021c9834,seq=0x358): \
 lanb.example.com > lana.example.com: ESP(spi=0x00c887ad,seq=0x358) (DF) \
 (ipip-proto-4)

Starting and Stopping an IPsec Connection

If the IPsec connection was not configured to activate on boot, you can control it from the command line.

To start the connection, use the following command on each host for host-to-host IPsec, or each IPsec router for network-to-network IPsec:

ifup <nickname>

where <nickname> is the nickname configured earlier, such as ipsec0.

To stop the connection, use the following command:

ifdown <nickname>
