How to Make Google More Accessible for Low-Vision Users with User Scripts
Make Google More Accessible for Low-Vision Users
Change Google's layout to make it easier for low-vision users to read.
As a class of disabilities, low-vision users are often ignored by accessibility experts. However, accessibility expert Joe Clark has recently published his research into the needs of web users with limited vision. He pioneered a technique known as the zoom layout: a special alternate style applied to a web page that specifically caters to low-vision users.
As I was learning about zoom layouts, it occurred to me that this would be a perfect application of Greasemonkey. (Actually, that thought occurs to me a lot these days.) This hack is my first attempt at transforming a site into a zoom layout.
|
The Code
This user script runs on several specific Google pages:
-
Google's home page at http://www.google.com.
-
International versions of Google's home page, such as http://www.google.ca.
-
Other variations of Google's home page, such as http://www.google.com/webhp and http://www.google.com/imghp. You can reach these by clicking one of the navigation links at the top of http://www.google.com.
-
Web search results.
-
Image search results.
|
Save the following user script as zoom-google.user.js:
// ==UserScript==
// @name Zoom Google
// @namespace http://diveintomark.org/projects/greasemonkey/
// @description make Google more accessible to low-vision users
// @include http://www.google.tld/
// @include http://www.google.tld/?*
// @include http://www.google.tld/webhp*
// @include http://www.google.tld/imghp*
// @include http://www.google.tld/search*
// @include http://images.google.tld/
// @include http://images.google.tld/?*
// @include http://images.google.tld/images*
// ==/ UserScript==
function addGlobalStyle(css) {
var elmHead, elmStyle;
elmHead = document.getElementsByTagName('head')[0];
elmStyle = document.createElement('style');
elmStyle.type = 'text/css';
elmHead.appendChild(elmStyle);
elmStyle.innerHTML = css;
}
function getElementsByClassName(sTag, sClassName) {
sClassName = sClassName.toLowerCase( ) + ' ';
var arElements = document.getElementsByTagName(sTag);
var iMax = arElements.length;
var arResults = new Array( );
for (var i = 0; i < iMax; i++) {
var elm = arElements[i];
var sThisClassName = elm.className;
if (!sThisClassName) { continue; }
sThisClassName = sThisClassName.toLowerCase( ) + ' ';
if (sThisClassName.indexOf(sClassName) != -1) {
arResults.push(elm);
}
}
return arResults;
}
function removeFontTags( ) {
// remove font tags
var arFonts = document.getElementsByTagName('font');
for (var i = arFonts.length - 1; i >= 0; i--) {
var elmFont = arFonts[i];
var elmSpan = document.createElement('span');
elmSpan.innerHTML = elmFont.innerHTML;
elmFont.parentNode.replaceChild(elmSpan, elmFont);
}
}
function zoomStyle( ) {
addGlobalStyle('body { margin: 30px; } \n' +
'body, td { font-size: large ! important; } \n' +
'html>body, html>body td { font-size: x-large ! important; } \n' +
'body, div, td { background: navy ! important; ' +
'color: white ! important; } \n' +
'a:link { background: transparent ! important; ' +
'color: yellow ! important; } \n' +
'a:visited { background: transparent ! important; ' +
'color: lime ! important; } \n' +
'a.fl { background: transparent ! important; ' +
'color: white ! important; } \n' +
'input { font-size: large ! important; } \n' +
'html>body input { font-size: x-large ! important; } \n' +
'.g { width: auto ! important; } \n' +
'.n a, .n .i { font-size: large ! important; } \n' +
'html>body .n a, html.body .n .i { font-size: x-large ! important; } \n' +
'.j { width: auto ! important; }');
}
function accHomePage( ) {
// remove personalized header, if any
var arTable = document.getElementsByTagName('table');
for (var i = arTable.length - 1; i >= 0; i--) {
var elmTable = arTable = ar
var html = elmTable.innerHTML;
if (/\/accounts\/Logout/.test(html)) {
elmTable.parentNode.removeChild(elmTable);
}
}
// simplify logo
var arImages = document.getElementsByTagName('img');
for (var i = arImages.length - 1; i >= 0; i--) {
var elmLogo = arImages[i];
if (elmLogo.alt) {
var elmTextLogo = document.createElement('h1');
elmTextLogo.style.fontSize = '400%';
var sAlt = /Firefox/.test(elmLogo.alt) ? '' : elmLogo.alt;
elmTextLogo.appendChild(document.createTextNode(sAlt));
elmLogo.parentNode.replaceChild(elmTextLogo, elmLogo);
var elmLink = elmTextLogo.parentNode;
while (elmLink.nodeName != 'BODY' &&
elmLink.nodeName != 'HTML' &&
elmLink.nodeName != 'A') {
elmLink = elmLink.parentNode;
}
elmLink.style.textDecoration = 'none';
} else {
elmLogo.parentNode.removeChild(elmLogo);
}
}
// simplify search form
if (document.forms.length) {
var arTD = document.getElementsByTagName('td');
for (var i = arTD.length - 1; i >= 0; i--) {
var elmTD = arTD[i];
if (/Advanced/.test(elmTD.innerHTML)) {
elmTD.innerHTML = '';
}
}
}
}
function accSearchResults( ) {
// simplify logo
var elmLogo = document.getElementsByTagName('img')[0];
var elmTextLogo = document.createElement('h1');
elmTextLogo.appendChild(document.createTextNode(' Google'));
elmTextLogo.style.marginTop = '0.2em';
elmTextLogo.style.marginRight = '0.3em';
elmLogo.parentNode.replaceChild(elmTextLogo, elmLogo);
elmTextLogo.parentNode.style.textDecoration = 'none';
// simplify top form
var elmAdvancedWrapper = document.getElementsByTagName('table')[3];
var elmAdvanced = elmAdvancedWrapper.getElementsByTagName('td')[1];
elmAdvanced.parentNode.removeChild(elmAdvanced);
// remove "tip" if present
var elmTip = document.getElementsByTagName('table')[7];
if (/Tip/.test(elmTip.innerHTML)) {
elmTip.parentNode.removeChild(elmTip);
}
// remove ads, if any
var aw1 = document.getElementById('aw1');
while (aw1) {
var table = aw1.parentNode;
while (table.nodeName != 'TABLE') {
table = table.parentNode;
}
table.parentNode.removeChild(table);
aw1 = document.getElementById('aw1');
}
var tpa1 = document.getElementById('tpa1');
if (tpa1) {
while (tpa1.nodeName != 'DIV' && tpa1.nodeName != 'P') {
tpa1 = tpa1.parentNode;
}
tpa1.parentNode.removeChild(tpa1);
}
var tpa2 = document.getElementById('tpa2');
if (tpa2) {
while (tpa2.nodeName != 'DIV' && tpa2.nodeName != 'P') {
tpa2 = tpa2.parentNode;
}
tpa2.parentNode.removeChild(tpa2);
}
addGlobalStyle('iframe[name="google_ads_frame"] { ' +
'display: none ! important }');
// simplify results count
var elmDivider = document.getElementsByTagName('table')[5];
elmDivider.parentNode.removeChild(elmDivider);
var elmResultsContainer = document.getElementsByTagName('table')[5];
var arTD = elmResultsContainer.getElementsByTagName('td');
if (arTD.length > 1) {
var sResults = arTD[1].textContent;
var iParen = sResults.indexOf('(');
if (iParen != -1) {
sResults = sResults.substring(0, iParen);
}
var iDef = sResults.indexOf('[');
if (iDef != -1) {
sResults = sResults.substring(0, iDef);
}
var elmResults = document.createElement('h2');
elmResults.appendChild(document.createTextNode(sResults));
elmResultsContainer.parentNode.replaceChild(elmResults,
elmResultsContainer);
} else {
elmResultsContainer.parentNode.removeChild(elmResultsContainer);
}
// make search results use real headers
var arResults = getElementsByClassName('p', 'g');
for (var i = arResults.length - 1; i >= 0; i--) {
var elmResult = arResults[i];
var arLink = elmResult.getElementsByTagName('a');
if (!arLink.length) { continue; }
var elmLink = arLink[0];
var elmWrapper = document.createElement('div');
var elmHeader = document.createElement('h3');
elmHeader.style.margin = elmHeader.style.padding = 0;
elmHeader.innerHTML = '<a href="' + elmlink.href + '">' +
elmLink.innerHTML + '</a>';
var elmContent = elmResult.cloneNode(true);
elmContent.innerHTML = elmContent.innerHTML.replace(/<nobr>/g, '');
arLink = elmContent.getElementsByTagName('a');
if (!arLink.length) { continue; }
elmLink = arLink[0];
elmContent.removeChild(elmLink);
elmContent.style.marginTop = 0;
elmWrapper.appendChild(elmHeader);
elmWrapper.appendChild(elmContent);
elmResult.parentNode.replaceChild(elmWrapper, elmResult);
}
// simplify next page link
var arFont = document.getElementsByTagName('font');
for (var i = arFont.length - 1; i >= 0; i--) {
var elmFont = arFont[i];
var html = elmFont.innerHTML;
if (/Result\ \;Page\:/.test(html)) {
var elmTable = elmFont.parentNode;
while (elmTable.nodeName != 'TABLE') {
elmTable = elmTable = elm
}
var arTD = elmTable.getElementsByTagName('td');
if (arTD.length) {
var elmTD = arTD[arTD.length - 1];
var arNext = elmTD.getElementsByTagName('a');
if (arNext.length) {
var elmNext = arNext[0];
var elmTextNext = document.createElement('center');
elmTextNext.innerHTML = '<p style="font-size: ' +
'xx-large; margin-bottom: 4em;">b><a href="' +
elmnext.href + '">More Results ' +
'→</a></b></p>';
elmTable.parentNode.replaceChild(elmTextNext,
elmTable);
}
}
break;
}
}
// remove bottom ads
var arCenter = document.getElementsByTagName('center');
if (arCenter.length > 1) {
var elmCenter = arCenter[1];
elmCenter.parentNode.removeChild(elmCenter);
elmCenter = arCenter[0];
for (var i = 0; i < 4; i++) {
elmCenter.innerHTML = elmCenter.innerHTML.replace(/<br>/, '');
}
}
}
document.forms.namedItem('f') && accHomePage( );
document.forms.namedItem('gs') && accSearchResults( );
removeFontTags( );
zoomStyle( );
Running the Hack
After installing the user script (Tools
Install This User Script), go to http://www.google.com. The normally spartan search form has been magnified and simplified even further, as shown in Figure 8-19.
Accessibility studies have shown that low-vision users have an easier time reading light text on a dark background, so therefore the page is displayed as white-on-navy. Unvisited links are displayed in yellow; visited links are displayed in light green. The hack removes several elements from the page, including the Advanced Search link, plus any advertisements for Google services or other messages that occasionally appear below the search box.

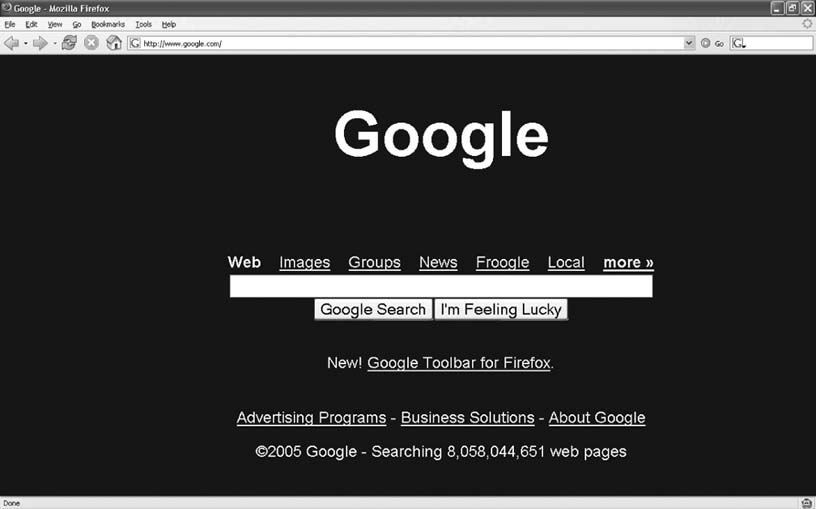

Figure 8-19. Google home page, zoomed
When you execute a search, the search results are displayed differently, as shown in Figures 8-20 and 8-21, with the following notable differences:
-
The entire page uses the same white-on-navy color scheme we used on the home page.
-
The Google logo in the top-left corner is displayed as plain text instead of as an image.
-
The top search form no longer includes the Advanced Search option.
-
The sponsored links along the top and right are gone.
-
The number of results is displayed much larger than before, and in the same white-on-navy color scheme.
-
Links to search results pages are displayed in yellow (or green, if you've already visited that page). Other links within each search result, such as the "Cached" and "Similar pages" links, are displayed in white.
-
The "Goooooooogle" navigation bar to see more results is replaced by a simple link titled "More results."
-
The search box at the bottom of the page is gone.
Figure 8-20. Google search results, zoomed

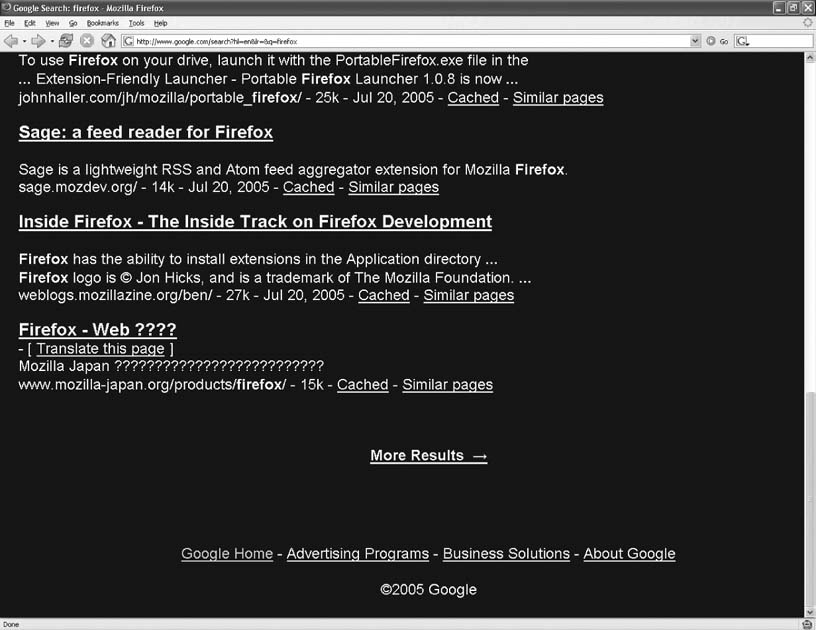

Figure 8-21. Bottom of Google search results, zoomed
If you click the Images link at the top of the page to search for the same keywords in Google Image Search, you will see that the image search results have been similarly hacked, as shown in Figure 8-22.
Figure 8-22. Google image results, zoomed
As with the web search results, the top navigation has been simplified, the number of results is more prominent, and the "Goooooooogle" navigation bar has been replaced by a single "More results" link that moves to the next page of images. The image thumbnails themselves cannot be magnified, since Google provides them only in a specific size.
