Adding Unallocated Volumes to a volume group

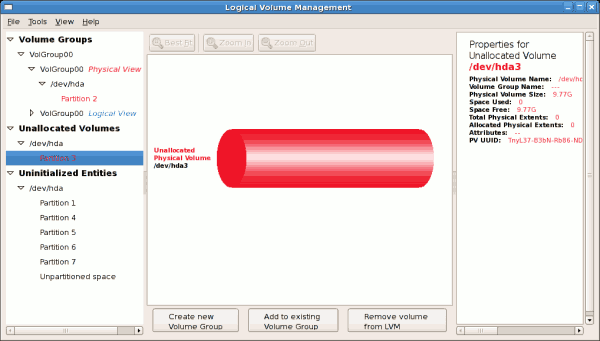

Once initialized, a volume will be listed in the 'Unallocated Volumes' list. The figure below illustrates an unallocated partition (Partition 3). The respective buttons at the bottom of the window allow you to:

create a new volume group,

add the unallocated volume to an existing volume group,
remove the volume from LVM.

To add the volume to an existing volume group, click on the Add to Existing Volume Group button.

Figure 10.18. Unallocated Volumes

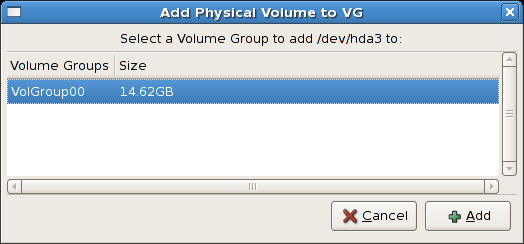

Clicking on the Add to Existing Volume Group button will display a pop up window listing the existing volume groups to which you can add the physical volume you are about to initialize. A volume group may span across one or more hard disks. In this example only one volume group exists as illustrated below.

Figure 10.19. Add physical volume to volume group

Once added to an existing volume group the new logical volume is automatically added to the unused space of the selected volume group. You can use the unused space to:

create a new logical volume (click on the Create New Logical Volume(s) button,

select one of the existing logical volumes and increase the extents (see "Extending a volume group"),
select an existing logical volume and remove it from the volume group by clicking on the Remove Selected Logical Volume(s) button. Please note that you cannot select unused space to perform this operation.

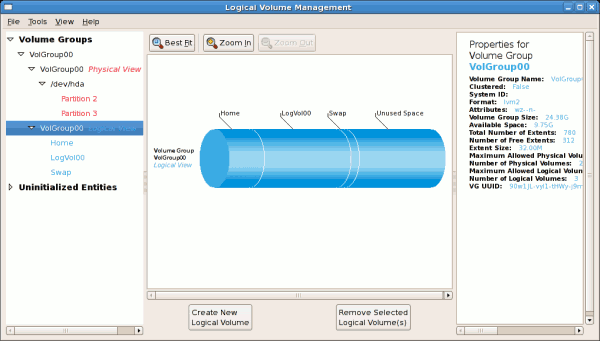

The figure below illustrates the logical view of 'VolGroup00' after adding the new volume group.

Figure 10.20. Logical view of volume group

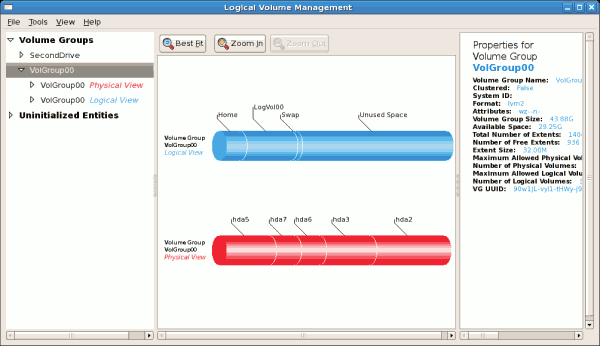

In the figure below, the uninitialized entities (partitions 3, 5, 6 and 7) were added to 'VolGroup00'.
