Establishing an xDSL Connection

DSL stands for Digital Subscriber Lines. There are different types of DSL such as ADSL, IDSL, and SDSL. The Network Administration Tool uses the term xDSL to mean all types of DSL connections.

Some DSL providers require that the system is configured to obtain an IP address through DHCP with an Ethernet card. Some DSL providers require you to configure a PPPoE (Point-to-Point Protocol over Ethernet) connection with an Ethernet card. Ask your DSL provider which method to use.

If you are required to use DHCP, refer to "Establishing an Ethernet Connection" to configure your Ethernet card.

If you are required to use PPPoE, follow these steps:

• Click the New button.
• Select xDSL connection from the Device Type list, and click Forward as shown in Figure 16.8, "Select Device Type".

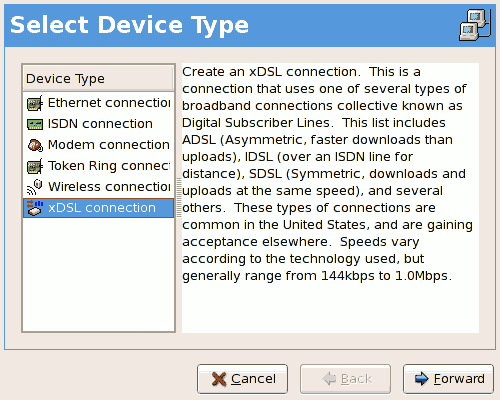

  Figure 16.8. Select Device Type



• If your Ethernet card is in the hardware list, select the Ethernet Device from the pulldown menu from the page shown in Figure 16.9, "xDSL Settings". Otherwise, the Select Ethernet Adapter window appears.

  The installation program detects supported Ethernet devices and prompts you to configure them. If you configured any Ethernet devices during the installation, they are displayed in the hardware list on the Hardware tab.



  Figure 16.9. xDSL Settings



• Enter the Provider Name, Login Name, and Password. If you are not setting up a T-Online account, select Normal from the Account Type pulldown menu.

  If you are setting up a T-Online account, select T-Online from the Account Type pulldown menu and enter any values in the Login name and Password field. You can further configure your T-Online account settings once the DSL connection has been fully configured (refer to Setting Up a T-Online Account).

• Click the Forward to go to the Create DSL Connection menu. Check your settings and click Apply to finish.
• After configuring the DSL connection, it appears in the device list as shown in Figure 16.10, "xDSL Device".



  Figure 16.10. xDSL Device



• After adding the xDSL connection, you can edit its configuration by selecting the device from the device list and clicking Edit.



  Figure 16.11. xDSL Configuration




  For example, when the device is added, it is configured not to start at boot time by default. Edit its configuration to modify this setting. Click OK when finished.

• Once you are satisfied with your xDSL connection settings, select File > Save to save the changes.

  Setting Up a T-Online Account

  If you are setting up a T-Online Account, follow these additional steps:
  1. Select the device from the device list and click Edit.
• Select the Provider tab from the xDSL Configuration menu as shown in Figure 16.12, "xDSL Configuration - Provider Tab".



  Figure 16.12. xDSL Configuration - Provider Tab



• Click the T-Online Account Setup button. This will open the Account Setup window for your T-Online account as shown in Figure 16.13, "Account Setup".



  Figure 16.13. Account Setup



• Enter your Adapter identifier, Associated T-Online number, Concurrent user number/suffix, and Personal password.. Click OK when finished to close the Account Setup window.
• On the xDSL Configuration window, click OK. Be sure to select File > Save from the Network Administration Tool to save the changes.

  When the device is added, it is not activated immediately, as seen by its Inactive status. To activate the device, select it from the device list, and click the Activate button. If the system is configured to activate the device when the computer starts (the default), this step does not have to be performed again.
