Distributed Computing

Distributed Computing

When many similar systems are found on the same network, it is often desirable to share common files and utilities among them. For example, a system administrator might choose to keep a copy of the system documentation on one computer's disk and to make those files available to remote systems. In this case, the system administrator configures the files so users who need to access the online documentation are not aware that the files are stored on a remote system. This type of setup, which is an example of distributed computing, not only conserves disk space but also allows you to update one central copy of the documentation rather than tracking down and updating copies scattered throughout the network on many different systems.

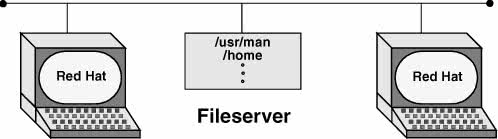

Figure 10-2 illustrates a fileserver that stores the system manual pages and users' home directories. With this arrangement, a user's files are always available to that userno matter which system the user logs in on. Each system's disk might contain a directory to hold temporary files as well as a copy of the operating system. Chapter 22 contains instructions for setting up NFS clients and servers in networked configurations.

The Client/Server Model

Mainframe model

The client/server model was not the first computational model. First came the mainframe, which follows a one-machine-does-it-all model. That is, all the intelligence resides in one system, including the data and the program that manipulates and reports on the data. Users connect to a mainframe using terminals.

File-sharing model

With the introduction of PCs, file-sharing networks became available. In this scheme data is downloaded from a shared location to a user's PC, where a program then manipulates the data. The file-sharing model ran into problems as networks expanded and more users needed access to the data.

Client/server model

In the client/server model, a client uses a protocol, such as FTP, to request services, and a server provides the services that the client requests. Rather than providing data files as the file-sharing model does, the server in a client/server relationship is a database that provides only those pieces of information that the client needs or requests.

The client/server model dominates UNIX and Linux system networking and underlies most of the network services described in this book. FTP, NFS, DNS, email, and HTTP (the Web browsing protocol) all rely on the client/server model. Some servers, such as Web servers and browser clients, are designed to interact with specific utilities. Other servers, such as those supporting DNS, communicate with one another, in addition to answering queries from a variety of clients. Clients and servers can reside on the same or different systems running the same or different operating systems. The systems can be proximate or thousands of miles apart. A system that is a server to one system can turn around and act as a client to another. A server can reside on a single system or, as is the case with DNS, be distributed among thousands of geographically separated systems running many different operating systems.

Peer-to-peer model

The peer-to-peer (PTP) model, in which either program can initiate a transaction, stands in contrast to the client/server model. PTP protocols are common on small networks. For example, Microsoft's Network Neighborhood and Apple's AppleTalk both rely on broadcast-based PTP protocols for browsing and automatic configuration. The Zeroconf multicast DNS protocol is a PTP alternative DNS for small networks. The highest-profile PTP networks are those used for file sharing, such as Kazaa and GNUtella. Many of these networks are not pure PTP topologies. Pure PTP networks do not scale well, so networks such as Napster and Kazaa employ a hybrid approach.

DNS: Domain Name Service

DNS is a distributed service: Nameservers on thousands of machines around the world cooperate to keep the database up-to-date. The database itself, which maps hundreds of thousands of alphanumeric hostnames to numeric IP addresses, does not exist in one place. That is, no system has a complete copy of the database. Instead, each system that runs DNS knows which hosts are local to that site and understands how to contact other nameservers to learn about other, nonlocal hosts.

Like the Linux filesystem, DNS is organized hierarchically. Each country has an ISO (International Organization for Standardization) country code designation as its domain name. (For example, AU represents Australia, IL is Israel, and JP is Japan; see www.iana.org/cctld/cctld.htm for a complete list.) Although the United States is represented in the same way (US) and uses the standard two-letter Postal Service abbreviations to identify the next level of the domain, only governments and a few organizations use these codes. Schools in the US domain are represented by a third- (and sometimes second-) level domain: k12. For example, the domain name for Myschool in New York state could be www.myschool.k12.ny.us.

Following is a list of the six original top-level domains. These domains are used extensively within the United States and, to a lesser degree, by users in other countries:

As this book was being written, the following additional top-level domains had been approved for use:

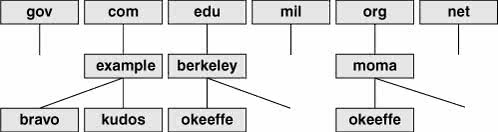

Like Internet addresses, domain names were once assigned by the Network Information Center (NIC, page 353); now they are assigned by several companies. A system's full name, referred to as its fully qualified domain name (FQDN), is unambiguous in the way that a simple hostname cannot be. The system okeeffe.berkeley.edu at the University of California at Berkeley (Figure 10-3) is not the same as one named okeeffe.moma.org, which might represent a host at the Museum of Modern Art. The domain name not only tells you something about where the system is located but also adds enough diversity to the namespace to avoid confusion when different sites choose similar names for their systems.

Unlike the filesystem hierarchy, the top-level domain name appears last (reading from left to right). Also, domain names are not case sensitive, so the names okeeffe.berkeley.edu, okeeffe.Berkeley.edu, and okeeffe.Berkeley.EDU refer to the same computer. Once a domain has been assigned, the local site is free to extend the hierarchy to meet local needs.

With DNS, email addressed to user@example.com can be delivered to the computer named example.com that handles the corporate mail and knows how to forward messages to user mailboxes on individual machines. As the company grows, its site administrator might decide to create organizational or geographical subdomains. The name delta.ca.example.com might refer to a system that supports California offices, for example, while alpha.co.example.com is dedicated to Colorado. Functional subdomains might be another choice, with delta.sales.example.com and alpha.dev.example.com representing the sales and development divisions, respectively.

BIND

On Linux systems, the most common interface to the DNS is BIND (Berkeley Internet Name Domain). BIND follows the client/server model. On any given local network, one or more systems may be running a nameserver, supporting all the local hosts as clients. When it wants to send a message to another host, a system queries the nearest nameserver to learn the remote host's IP address. The client, called a resolver, may be a process running on the same computer as the nameserver, or it may pass the request over the network to reach a server. To reduce network traffic and facilitate name lookups, the local nameserver maintains some knowledge of distant hosts. If the local server must contact a remote server to pick up an address, when the answer comes back, the local server adds that address to its internal table and reuses it for a while. The nameserver deletes the nonlocal information before it can become outdated. Refer to "TTL" on page 1060.

The system's translation of symbolic hostnames into addresses is transparent to most users; only the system administrator of a networked system needs to be concerned with the details of name resolution. Systems that use DNS for name resolution are generally capable of communicating with the greatest number of hostsmore than would be practical to maintain in a /etc/hosts file or private NIS database. Chapter 24 covers setting up and running a DNS server.

Three common sources are referenced for hostname resolution: NIS, DNS, and system files (such as /etc/hosts). Linux does not ask you to choose among these sources; rather, the nsswitch.conf file (page 435) allows you to choose any of these sources, in any combination, and in any order.

Ports

Ports are logical channels on a network interface and are numbered from 1 to 65,535. Each network connection is uniquely identified by the IP address and port number of each endpoint.

In a system that has many network connections open simultaneously, the use of ports keeps packets (page 1047) flowing to and from the appropriate programs. A program that needs to receive data binds to a port and then uses that port for communication.

Privileged ports

Services are associated with specific ports, generally with numbers less than 1024. These ports are called privileged (or reserved) ports. For security reasons, only root can bind to privileged ports. A service run on a privileged port provides assurance that the service is being provided by someone with authority over the system, with the exception that any user on Windows 98 and earlier Windows systems can bind to any port. Commonly used ports include 22 (SSH), 23 (TELNET), 80 (HTTP), 111 (Sun RPC), and 201208 (AppleTalk).

NIS: Network Information Service

NIS (Network Information Service) simplifies the maintenance of frequently used administrative files by keeping them in a central database and having clients contact the database server to retrieve information from the database. Just as DNS addresses the problem of keeping multiple copies of hosts files up-to-date, NIS deals with the issue of keeping system-independent configuration files (such as /etc/passwd) current. Refer to Chapter 21 for coverage of NIS.

NFS: Network Filesystem

The NFS (Network Filesystem) protocol allows a server to share selected local directory hierarchies with client systems on a heterogeneous network. Files on the remote fileserver appear as if they are present on the local system. NFS is covered in Chapter 22.
