Implicit Lists

An implicit list has a default action associated with it. An implicit list enables a user to select one element and to perform its associated (implied) action on the selection.

app Developers

Strongly Recommend: Java graphics bulb1_icon.gif The minimum size of an implicit list is two elements.

Strongly Recommend: Java graphics bulb1_icon.gif Make the implied action the primary task that you expect the user to accomplish with the screen. For example, a mail app might present a list of messages as an implicit list. The user could read the message, delete it, or file it in a different mailbox. The primary task, reading the message, should be the implied action.

Implicit lists have a default select command, SELECT_COMMAND, provided by the MIDP implementation. An app developer can associate the implied action with SELECT_COMMAND, but the user will be given only a neutral label, or no label, for the action. Screenshot shows a list that uses the default SELECT_COMMAND. To choose an element and execute the implied action, the user must press the Select button. The implied action has no command label associated with a soft button.

Recommend: Java graphics bulb2_icon.gif Replacing SELECT_COMMAND with an abstract command allows you to provide a meaningful label to help direct users. The abstract command should be of type ITEM (the Select button will still signal your app that a SELECT_COMMAND has taken place). Screenshot shows an abstract command (labeled Choose) provided by an app for the SELECT_COMMAND.

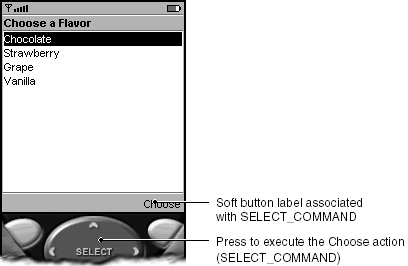

Screenshot Implicit List with an Abstract Command for SELECT_COMMAND

Java graphics 05fig08.gif

Screenshot Implicit List with Only the Default SELECT_COMMAND

Java graphics 05fig07.gif

An implicit-list screen can have abstract commands in addition to its implied action.

app Developers

Consider: Give implicit-list screens an abstract command that enables users to move to another screen without acting on a choice. Provide this abstract command in addition to an implied action. This applies the design consideration, "Make Everything Interruptible" on page 13.

Screenshot shows an implicit list with an abstract command that enables the user to move to another screen without making a choice.

Screenshot Implicit List with an Abstract Command and an Implied Action

Java graphics 05fig09.gif

An implicit-list screen could also have abstract commands for other tasks. For example, SmartTicket has an implicit list that shows the available movies in the user's viewing area. The list's implied action could be to choose the selected movie. In addition, the screen could have abstract commands associated with it that allow the user to see a poster for the movie or return to the previous screen. Screenshot shows what this screen could look like.

Screenshot SmartTicket's Implicit List with Additional Abstract Commands

Java graphics 05fig10.gif

MIDP Implementors

Strongly Recommend: Java graphics bulb1_icon.gif Do not allow users to invoke the Select command if there are no elements in the list. If there are no elements, disable the Select command and remove it from any soft button or menu.
