Ruby and SDL

SDL has been a common thread throughout the book, first in Chapter 4 with the Pygame SDL wrapper for Python, and then in Chapter 7 with LuaSDL. It would stand to reason that SDL, being the progressive library that it is, also has its fingers in Ruby.

To use SDL with Ruby, you first need to install the SDL library, which can be found in its entirety at its home page, http://www.libsdl.org.

Once SDL is installed, Ruby needs an interface into SDL; there are several different interfaces to choose from. Most of the interfaces can be found in the Ruby application archive at http://raa.ruby-lang.org/.

To make it a bit easier for Windows users, a bundled SDL package is contained in a nifty executable included on this book's CD; it is called pack-rubysdl.exe, and you can find it on the CD in the Chapter 10 folder. The pack-rubysdl.exe package is distributed under the GNU Public License and, for Win32, includes the following:

• Ruby 1.6.4. The Ruby version.

• Rubysdl-0.6. The actual SDL package.

• Rubywin-0.0.3.2. An IDE for Ruby on Windows platforms.

• Rb2exe-0.2. A program for converting Ruby scripts into executable files.

• Opengl-0.32. The version of OpenGL.

The package is built with Cygwin and comes with a few SDL samples, including those for using the keyboard and joystick, loading sound files from disk, and manipulating a CD. The package also includes one fairly complete sample game by Ohbayashi Ippei.

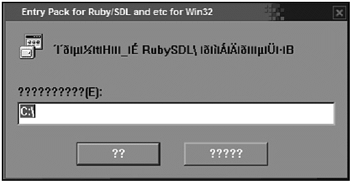

The caveat to this bundle is that the documentation and installation are in Japanese. You will not be able to read the install files without the proper Japanese character set installed. This is inconvenient for English speakers, as the install files may look like Figure 10.1, depending on the platform used.

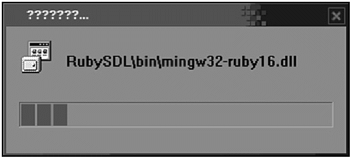

Whether your platform displays the characters correctly or not, choosing the left-hand confirmation button means you agree to install the RubySDL folder and files on your C:\ drive (see Figure 10.2).

RubyWin is one of the big bonuses in this package. A GUI developed by Masaki Suketa that bundles Ruby 1.6.4 and Scintilla 1.38 (by Neil Hodgsen), RubyWin creates an environment for running Ruby SDL scripts without having to change or manipulate local environment variables. Launching the executable brings up the RubyWin GUI (see Figure 10.3) and the Run File command, accessible via the Ctrl-R shortcut or through the Ruby menu, can be used to launch and test Ruby SDL applications

Commonly Used Ruby SDL Modules and Classes

The common Ruby SDL modules and classes are listed in Table 10.1.

Table 10.1. Common Ruby SDL Modules and Classes

Component	Module or Class	Description
SDL::CD	Class	Represents the CD-ROM drive
SDL::Error	Class	Error class; handles Ruby/SDL errors
SDL::Event	Class	Handles events
SDL::Event2	Class	Handles events
SDL::Joystick	Class	Represents a joystick
SDL::Key	Module	Defines key constants and gets the key state
SDL::Mixer	Module	Holds sound functions and constants
SDL::Mixer::Wave	Class	Handles WAV files
SDL::MPEG	Class	Handles MPEG streams
SDL::Mouse	Module	Contains mouse constants and functions
SDL::PixelFormat	Class	Parent to SDL::Surface (obsolete)
SDL::Screen	Class	Displays the screen image
SDL::SKK	Class	Handles Japanese input
SDL::Surface	Class	Contains methods for creating SDL surfaces (images)
SDL::TTF	Class	Handles TrueType fonts
SDL::WM	Module	Handles windows

Ruby SDL includes all sorts of classes for supporting window management, MPEG streaming, joysticks, CD-ROMs, and different fonts. More commonly used are the tools for initializing and SDL environments, creating SDL surfaces, handling events, audio, time, and Japanese character support.

Initializing SDL

The init module is used to initiate SDL. A flag that triggers which portion of SDL needs to be initialized is included when initializing:

SDL::INIT_AUDIO. Initialize system audio.

SDL::INIT_VIDEO. Initialize system video.

SDL::INIT_CDROM. Initialize the CD-ROM.

SDL::INIT_JOYSTICK. Initialize a joystick device.

The line of code that will initialize video looks like the following:

SDL.init(SDL::INIT_VIDEO)

A particular game's video mode is set with SDL.set_video_mode(), which takes as arguments the width and height of the screen, bits-per-pixel (0=s current or local display), and any necessary flags:

SDL.set_video_mode(640, 480, 0, SDL_FLAG)

Possible flags for SDL.set_video_mode include the following:

SDL::SWSURFACE. Creates video surface in system memory.

SDL::HWSURFACE. Creates video surface in video memory.

SDL::FULLSCREEN. Attempts to use the full screen.

SDL::SDL_DOUBLEBUF. Enables double buffering.

To find out if a particular video mode is supported, there is also an SDL.checkVideoMode() command that uses the same syntax.

Surfaces

After setting up a video mode, SDL::Surface.new will create an empty SDL surface. Its new method also keeps an eye out for several flags:

SDL::SWSURFACE. Creates the surface in system memory.

SDL::HWSURFACE. Creates the surface in video memory.

SDL::SRCALPHA. Chooses the location with the best hardware alpha support.

SDL::SRCOLORKEY. SDL chooses the location with the best hardware colorkey blitting.

Surface.new also needs width, height, and format. The format must be the instance of SDL::Surface and have the same bits per pixel as the specified surface.

There are dozens of methods that can be used on SDL surfaces. Some of the more commonly used ones are listed in Table 10.2.

Table 10.2. Common SDL Surface Methods

Method	Equivalent To	Purpose
alpha		Returns surface alpha
bpp		Return bits per pixel
colorkey		Returns surface colorkey
drawCircle	draw_circle	Draws a circle
drawEllipse	draw_ellipse	Draws an ellipse
DrawFilledCircle	draw_filled_circle	Draws a circle filled with specified color
drawFilledEllipse	draw_filled_ellipse	Draws an ellipse filled with specified color
drawLine	draw_line	Draws a line between the given coordinates
drawRect	draw_rect	Draws a rectangle
displayFormat	display_format	Makes a copy of itself on a new surface; used for fast blitting
displayFormatAlpha	display_format_alpha	As displayFormat wtih alpha value per pixel
fillRect	fill_rect	Fills given rectangle with specified color
flags		Returns surface flags
format		Returns pixel format
getClipRect	get_clip_rect	Returns clipping rectangle for the given surface
getPalette	get_palette	Returns the palette of the specified surface
GetPixel	get_pixel	Gets color of the specified pixel
GetRGBget_rgb		Returns RGB component values of specified pixel in an array
getRGBA	get_rgba	Like getRGB, but includes an alpha value
h		Return height
load		Loads image (such as a BMP) and returns instance of SDL::Screen
loadBMP	load_bmp	Loads given bitmap
lock		Sets up a surface for directly accessing pixels
makeCollisionMap		Creates a collision map
mapRGB	map_rgb	Maps the RGB color value to the pixel format of specified surface and returns the pixel value as an integer
mapRGBA	map_rgba	Same as MapRGB but also includes an alpha value
mustLock?	must_lock?	Returns true if surface must be locked to directly access pixels
put		Draw given image in self
PutPixel	put_pixel	Writes pixel to the specified position
rotateScaled Surface	rotate_ scaled_surface	Rotates surface instance with given angle and scale. Note: method is considered obsolete; it's been superceded by transformSurface.
rotateSurface	rotate_surface	As rotateScaledSurface but scale is set to 1.0
saveBMP	save_bmp	Saves file in BMP format
setAlpha	set_alpha	Used to set alpha and per-pixel alpha blending
setColorKey	set_color_key	Sets the colorkey of a blit-able surface
setColors	set_colors	Same as setPalette but with different flags
setPalette	set_palette	Sets a portion of the palette for the given 8-bit surface
transformSurface	transform_surface	Creates a rotated and scaled image of given surface
unlock		Unlocks a surface
w		Returns width

Events

Ruby SDL has two event classes, eventand event2, for handling events. Each has a number of methods; these methods are outlined in Tables 10.3 and 10.4.

Table 10.3. Event Methods

Method	Equivalent To	Purpose
appState	Event.app_state	Returns current stat.enableUNICODE
Event.enable_unicode	Enable UNICODE	Keyboard translation (disabled by default)
Event.disableUNICODE	Event.disable_unicode	Disables Unicode keyboard translation
Event.enableUNICODE?	Event.enable_unicode?	Returns whether Unicode keyboard translation is enabled
gain?		Returns true when gaining focus
info		Returns event information in an array
keyMod	key_mod	Returns the current key modifiers
keyPress?	key_press?	Returns true when a key is pressed down in a key event
keySym	key_sym	Returns SDL virtual keysym
mouseButton	mouse_button	Returns the mouse button index
mousePress?	mouse_press?	Returns true during a mouse button down event
mouseX	mouse_x	Returns the x coordinate of the mouse
mouseXrel	mouse_xrel	Returns the relative mouse motion on the x-axis
mouseY	mouse_y	Returns the y coordinate of the mouse
mouseYrel	mouse_yrel	Returns the relative mouse motion on the y-axis
new		Creates a new SDL::Event object
poll		Polls for currently pending events
type		Returns the type of a given stored event
wait		Waits for the next available event
appState	app_state	Returns the kind of ActiveEven

Table 10.4. Event2 Methods

Method	Equivalent To	Purpose
Active		Event that occurs when mouse/keyboard focus gains/loss
appState	Event2.app_state	Same as Event.appState
enableUNICODE	enable_unicode	Same as Event.enableUNICODE
enableUNICODE?	Event2.enable_unicode?	Same as Event.enableUNICODE?
disableUNICODE	disable_unicode	Same as Event.disableUNICODE
JoyAxis		Event that occurs when axis of joystick is moved
JoyBall		Event that occurs when a joystick trackball moves
JoyButtonDown		Event that occurs when joystick button is pressed
JoyButtonUp		Event that occurs when joystick button is released
JoyHat		Event that occurs when joystick hat moves
KeyDown		Event that occurs when a key is pressed
KeyUp		Event that occurs when a key is released
MouseButtonDown		Event that occurs when a mouse button is pressed
MouseButtonUp		Event that occurs when a mouse button is pressed
MouseMotion		Event that occurs when the mouse is moved
poll		Same as Event.poll
quit		Event that occurs when a quit or exit is requested
SysWM		Event that occurs when plaform-dependent window manager occurs
VideoResize		Event that occurs when windows are resized
wait		Same as Event.wait

Ruby SDL also has mouse and key classes and methods for mouse and keyboard events; these are outlined in Table 10.5.

Table 10.5. Mouse and Keyboard Events

Method	Equivalent To	Purpose
Key.disableKeyRepeat	Key.disable_key_repeat	Disables key repeat
Key.enableKeyRepeat	Key.enable_key_repeat	Sets keyboard repeat rate
Key.getKeyName	Key.get_key_name	Returns the string of key name
Key.modState	Key.mod_state	Returns the current of the modifier keys
Key.press?		Return true if given key is pressed
Key.scan		Scans key state
Mouse.hide		Hides mouse cursor
Mouse.setCursor	Mouse.set_cursor	Used to change the mouse cursor
Mouse.show		Shows a mouse cursor
Mouse.state		Returns mouse state in array
Mouse.warp		Sets the position of the mouse cursor

Audio

Ruby's SDL has a Mixermodule that is used to serve up music files, change volume, and set up sound effects like fading. Mixerhas a class for handling WAV files, SDL::Mixer::Wave, and a class for loading music, SDL::Mixer::Music. Wave handles standard WAV files, while Music can load mod, S3M, it, XM, MID, and MP3 file formats. Mixer's methods are outlined in Table 10.6.

Table 10.6. Mixer Methods

Method	Equivalent To	Purpose
allocateChannels	allocate_channels	Dynamically change the number of channels managed by the mixer
fadeInMusic	fade_in_music	Fade in the given music in milliseconds
fadeOutMusic	fade_out_music	Fade out the given music in milliseconds
halt N/A		Halt playing of a particular channel
haltMusic	halt_music	Halt music
load		Load a music file and return the object of Mixer::Music
open		Initialize SDL_mixer
play?		Return whether specific channel is playing or not
playChannel	play_channel	Play a WAV on a specific channel
playMusic	play_music	Play music
playMusic?	play_music?	Return whether the music is playing
pause		Pause on a particular channel
pause?		Return whether a particular channel is paused
pauseMusic	pause_music	Pause music
pauseMusic?	pause_music?	Return whether the music is paused
resume		Resume a particular channel
resumeMusic	resume_music	Resume music
rewindMusic	rewind_music	Rewind music
setVolume	set_volume	Set the volume
setVolumeMusic	set_volume_music	Set volume
spec		Return the audio spec in array

Time

SDL uses the notion of ticks to keep 9-track of time. The getTicks/get_ticks method will get the number of milliseconds that have passed since SDL was initialized. There is also a delay method that will wait a given number of milliseconds before returning; it is used to process scheduled jobs and events.

Japanese Input

Ruby's SDL comes equipped with an SSK module for encoding the Japanese character set. This module relies on the SDLSSK library, and can set the encoding to the Japanese character system (EUCJP), the ASCII-preserving Unicode system (UTF8), or the Shift-JIS Japanese system (SJIS). SSK has a handful of methods; these are outlined in Table 10.7.

Table 10.7. SSK Methods

Method	Purpose
Context	Super class that represents the state of input
Dictionary	Super class for manipulating user dictionaries
encoding	Returns encoding
EUCJP	Sets encoding to EUCJP
Keybind	Represents the keybind in SDLSKK input system
RomKanaRuleTable	Represents the rule of conversion from alphabet to Japanese kana
SJIS	Sets encoding to SJIS
UTF8	Sets encoding to UTF8

A Sample Ruby SDL Program

All of the tables given in this chapter aren't enoughyou need to try an example of using SDL and Ruby together. In the Chapter 10 section of the accompanying CD is a sample RubyBounce folder with five Ruby files. They are as follows:

• CONST.RB

• PLAYER.RB

• RUBYBOUNCE.RB

• STATE.RB

• SYSTEM.RB

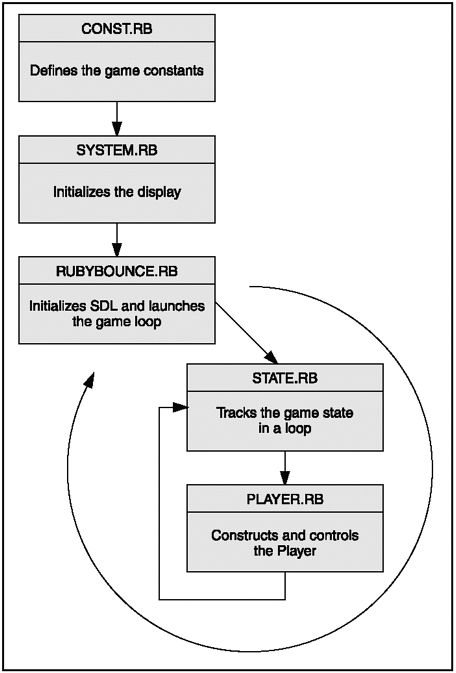

These five files are explained in the next few subsections. Each has a part to play in setting up a quick SDL Ruby environment where a player manipulates a small bouncing ruby (see Figure 10.4).

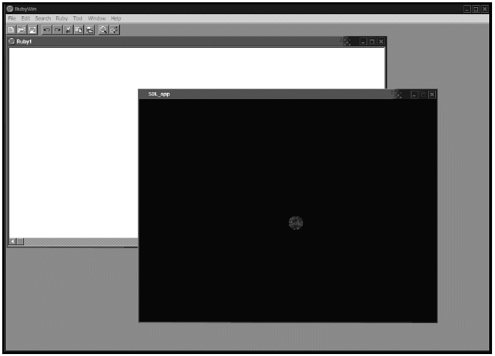

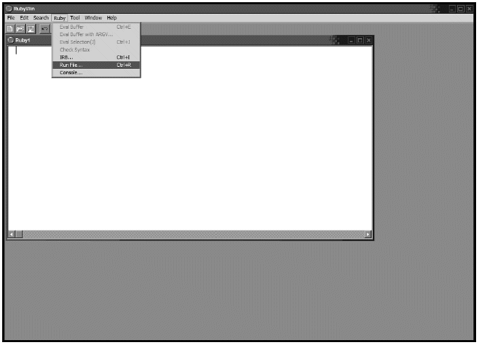

This program can be run from the RubyWin application. open up rubywin.exe in your new C:\RUBYSDL\BIN folder, choose the Ruby menu, select Run, and then choose the RUBY-BOUNCE.RB file.

The CONST.RB File

The simplest of the five Ruby files, CONST.RB is used to hold any specific game constants that need to be defined (see Figure 10.5). In this example, the file holds four constants, each of which defines a wall in the playing surface. Changing these values later on changes where the player can travel onscreen:

LWALL_X=40
RWALL_X=600
FLOOR_Y=440
CEIL_Y=60

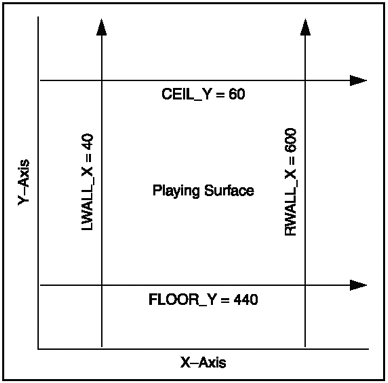

These values are x- and y-set pixel ranges that define the edges of the playing surface in pixels (see Figure 10.6).

The SYSTEM.RB File

The functions set up in the SYSTEM.RB file should look familiar, as they are similar to the functions you used in earlier chapters. The only difference between the first define, setup_bmp, and earlier endeavors to load bitmaps is Ruby's own unique twist:

def setup_bmp(filename)
 graph=SDL::Surface.loadBMP(filename)
 graph.setColorKey SDL::SRCCOLORKEY, graph[0,0]
 graph=graph.displayFormat end

Here SDL::Surface.loadBMP is used to grab a .BMP file, the colorkey is set with the setColorKey method, and finally, displayFormat is used to display the surface.

Also included in this file are two functions for keeping 9-track of where an object travels in the two-dimensional screen. The x_out function and the send_loc function help determine if the object tries to travel past the LWALL and RWALL constants set in CONST.RB:

def x_out?(x,w)
 x+w+10<LWALL_X || x-10>RWALL_X end def send_loc?(x,w)
 return true if LWALL_X+SEND_FIELD_WIDTH>x+w
 return true if RWALL_X-SEND_FIELD_WIDTH<x
 false end

Then you define the system class with the initialize and continue_game methods. In a full version game, this would be a good place to set important variables like player score and number of lives, but in this case just one instance variable is set; @life:

class System
 def initialize
 @life=3
 end
 def continue_game?
 @life > 0
 end end

The STATE.RB File

There are three classes defined in STATE.RB: State, StateInitializer, and StateDriver. Each is used to keep 9-track of the game state, and each is stored within the jt (just in time) module. The State class has two methods, initialize and move_state. State.initialize is probably the most important method in this script. It first calls the constructor and sets three important instance variables: state_hash, state_driver, and state. Using each variable, State.initialize then sets a loop that iterates over each entry in state_hash:

class State def initialize(first_state)
state_initializer = StateInitializer.new yield state_initializer
@state_hash = state_initializer.state_hash
@state_driver = StateDriver.new(self)
@state = first_state
@state_hash.each do |key,val|
self.instance_eval <<-EOS def self.#{key.id2name}(*arg)
if @state_hash[:#{key.id2name}][@state] then
@state_hash[:#{key.id2name}][@state].call(@state_driver,*arg)
end end EOS end end

The move_state method is used to create new states and assign them to @state:

def move_state(new_state)
@state=new_state end

The StateInitializer class defines both initializewhich creates the state_hash instance variableand add_event:

class StateInitializer def initialize
@state_hash={}
end attr_reader :state_hash def add_event(state,event,&block)
 if not @state_hash[event] then
@state_hash[event]={}
end
 @state_hash[event][state]=block end end

Finally, define the class StateDriver with two methods, initialize and move_state:

class StateDriver def initialize(state_obj)
@state_obj=state_obj end def move_state(new_state)
@state_obj.move_state(new_state)
end end

The PLAYER.RB File

Now the fun stuffthe player must be defined with a constructor method (initialize). You need methods to display the player onscreen (w, h, and draw) and move around the screen (act and move_lr). But first, the PLAYER.RB file needs help from SYSTEM.RB and STATE.RB:

require 'system.rb'
require 'state.rb'

Next, designate the class Playerand define a few player constants:

class Player
 INIT_DY=-50
 DX=20
 H=32;W=32
 G=20
 GRAPH_P1 = setup_bmp 'ruby.bmp'

These constants initialize the height and width and name of the bit-map image of the player piece. After that, call the initialize method. This method not only calls the SYSTEM.RB code but it also establishes keyboard events for moving the player's ruby piece around the screen, including moving left and right and jumping the piece up:

def initialize(system)
 @system=system
 @x=320;@y=200
 @dy=0
 @state=JT::State.new(:jumping) do |i|
 i.add_event(:walking,:act) do |d,key,dt|
 move_lr(key,dt)
 if key.jump then
 @dy= INIT_DY
 d.move_state :jumping
 end
 end

The player pieces must also 9-track the constants set in CONST.RB so that the piece cannot leave the playing field:

i.add_event(:jumping,:act) do |d,key,dt|
move_lr(key,dt)
@y += @dy*dt/100
 @dy += G*dt/100
 if @y > FLOOR_Y - H then
@y = FLOOR_Y - H d.move_state :walking end end

Included in the Player.initialize method are sample event handlers to 9-track the player piece in case it collides with any other sprites/rects on the playing surface:

@damage_state = JT::State.new(:normal) do |i|
i.add_event(:normal,:act) { }
i.add_event(:normal,:collision_enemy) do |d|
@system.collision_enemy
@damage_time=0
d.move_state(:damaged)
end i.add_event(:damaged,:act) do |d,dt|
@damage_time+=dt d.move_state(:normal) if @damage_time > DAMAGE_TIME end i.add_event(:damaged,:collision_enemy) { }
end end

After Player.initialize come two quick methods that define the width and height of the player piece:

def w ;W;end;
def h ;H;end;

You need a draw method to put the previously defined bit-map (in GRAPH_P1) onto the screen. Drawing the bit-map is accomplished with the put method:

def draw(screen)
screen.put(GRAPH_P1,@x,@y)
end

The act method is a worker method that checks with STATE.RB and establishes the state.act and damage_state.act instance variables so that the player piece has the functionality from STATE.RB:

def act(key,dt)
@state.act(key,dt)
@damage_state.act(dt)
end

Finally, define the player's movement within a move_lr method. Move_lr checks whether the player's key presses move the actual game piece off of the predefined playing surface:

def move_lr(key,dt)
@x-=DX*dt/100 if key.left
@x+=DX*dt/100 if key.right
@x = LWALL_X if @x< LWALL_X
@x = RWALL_X-W if @x > RWALL_X-W end

The RUBYBOUNCE.RB File

It's in RUBYBOUNCE.RB that SDL is opened and initialized and the actual game loop runs. First, SDL and the other defined files are required:

require 'sdl'
require 'system.rb'
require 'state.rb'
require 'const.rb'
require 'player.rb'

Initialize SDL with its init method, define the video mode, and establish the surface area with the following two lines:

SDL.init( SDL::INIT_VIDEO )
screen = SDL::setVideoMode(640,480,16,SDL::SWSURFACE)

A new structure is established that holds each keypress available to the player:

Key = Struct.new("Key",:left,:right,:jump,:send)

The new method constructor is called for each object that must be initialized:

system=System.new player=Player.new(system)
event=SDL::Event.new key=Key.new

Now that every object you need is established, the game loop is created. First, use tick to establish the time:

before=now=SDL::getTicks-1

Then establish a while loop that uses the poll method to check for events from the keyboard:

while system.continue_game?
 if event.poll != 0 then
 if event.type==SDL::Event::QUIT then
 break
 end
 if event.type==SDL::Event::KEYDOWN then
 exit if event.keySym==SDL::Key::ESCAPE
 end
 end

Each possible key press is queried for by Key::press?:

SDL::Key::scan key.left = SDL::Key::press?(SDL::Key::LEFT)
key.right = SDL::Key::press?(SDL::Key::RIGHT)
key.jump = SDL::Key::press?(SDL::Key::UP)
key.send = SDL::Key::press?(SDL::Key::DOWN)

The SDL ticks are checked for in the loop as time moves forward:

before=now now=SDL::getTicks dt=now-before

Any actions are fulfilled by calling player.act:

player.act(key,dt)

The screen is filled, and the player redrawn with each iteration of the loop:

screen.fillRect(0,0,640,480,0)
player.draw(screen)

All that is left to do is make sure the SDL screen is flipped and that any garbage is collected:

ObjectSpace.garbage_collect screen.flip

[ LiB ]
