A Closer Look at MIB-II

MIB-II is a very important management group, because every device that supports SNMP must also support MIB-II. Therefore, we will use objects from MIB-II in our examples throughout this tutorial. We won't go into detail about every object in the MIB; we'll simply define the subtrees. The section of RFC1213-MIB that defines the base OIDs for the mib-2 subtree looks like this:

mib-2 OBJECT IDENTIFIER ::= {
 mgmt 1
}
system OBJECT IDENTIFIER ::= {
 mib-2 1
}
interfaces OBJECT IDENTIFIER ::= {
 mib-2 2
}
at OBJECT IDENTIFIER ::= {
 mib-2 3
}
ip OBJECT IDENTIFIER ::= {
 mib-2 4
}
icmp OBJECT IDENTIFIER ::= {
 mib-2 5
}
tcp OBJECT IDENTIFIER ::= {
 mib-2 6
}
udp OBJECT IDENTIFIER ::= {
 mib-2 7
}
egp OBJECT IDENTIFIER ::= {
 mib-2 8
}
transmission OBJECT IDENTIFIER ::= {
 mib-2 10
}
snmp OBJECT IDENTIFIER ::= {
 mib-2 11 }


mib-2 is defined as iso.org.dod.internet.mgmt.1, or . From here, we can see that the system group is mib-2 , or , and so on. Figure 2-4 shows the MIB-II subtree of the mgmt branch. Figure 2-4

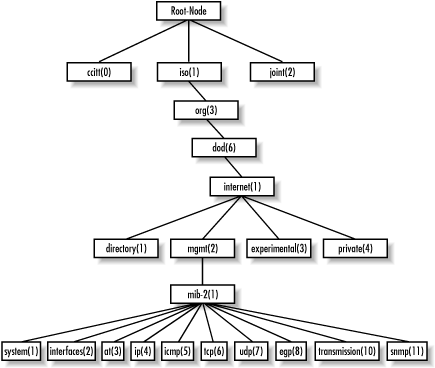

Figure 2-4. MIB-II subtree

Table 2-5 briefly describes each of the management groups defined in MIB-II. We don't go into great detail about each group, since you can pull down RFC 1213 and read the MIB yourself.

Table 2-5. Brief Description of the MIB-II Groups

Subtree Name OID Description
system Defines a list of objects that pertain to system operation, such as the system uptime, system contact, and system name.
interfaces Keeps track of the status of each interface on a managed entity. The interfaces group monitors which interfaces are up or down and tracks such things as octets sent and received, errors and discards, etc.
at The address translation (at) group is deprecated and is provided only for backward compatibility. It will probably be dropped from MIB-III.
ip Keeps track of many aspects of IP, including IP routing.
icmp Tracks things such as ICMP errors, discards, etc.
tcp Tracks, among other things, the state of the TCP connection (e.g., closed, listen, synSent, etc.).
udp Tracks UDP statistics, datagrams in and out, etc.
egp Tracks various statistics about EGP and keeps an EGP neighbor table.
transmission There are currently no objects defined for this group, but other media-specific MIBs are defined using this subtree.
snmp Measures the performance of the underlying SNMP implementation on the managed entity and tracks things such as the number of SNMP packets sent and received.
