Package diagrams

The following figures provide a visual representation of the relationships between the classes in the AWT packages.

java.awt, as the mother of all AWT packages, is better represented by two diagrams, one for the graphics classes and one for the component and layout classes.

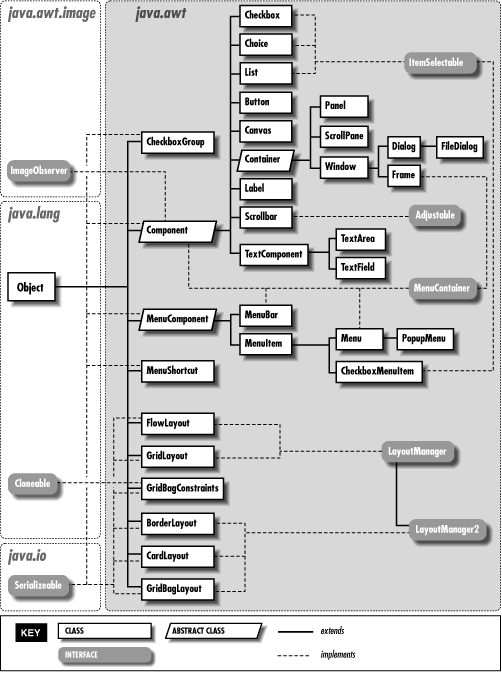

Figure 18.1: Component and Layout classes of the java.awt package.

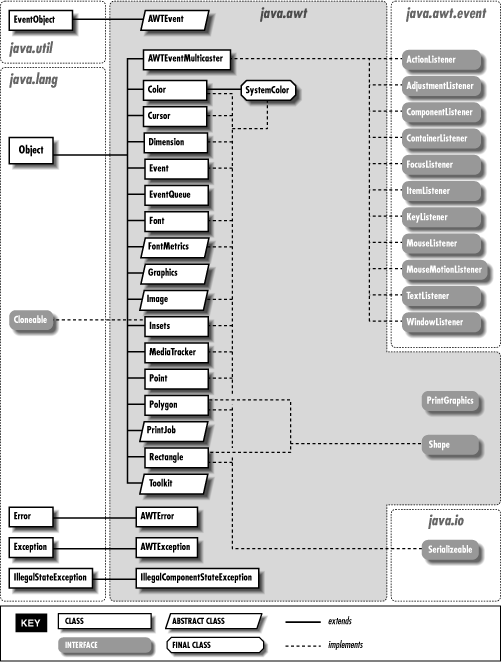

Figure 18.2: Graphics classes of java.awt package

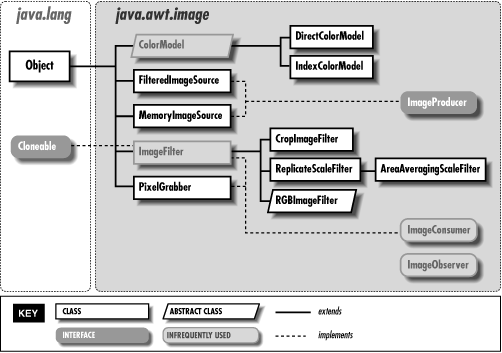

Figure 18.3: The java.awt.image package

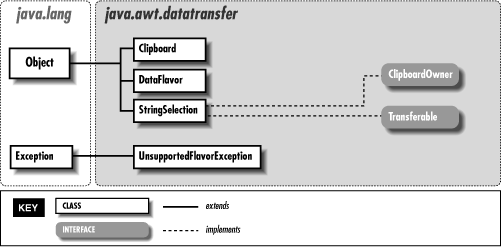

Figure 18.4: The java.awt.datatransfer package

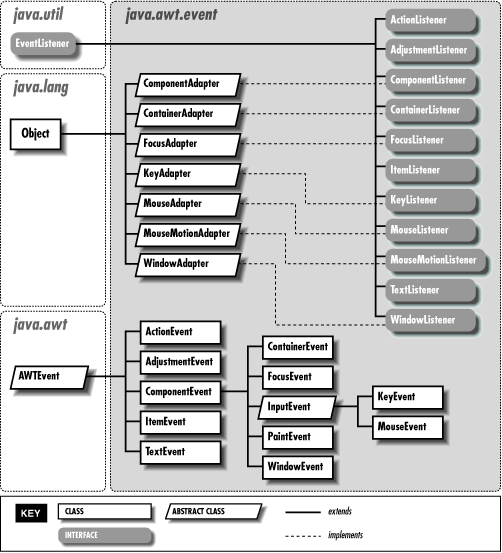

Figure 18.5: The java.awt.event package

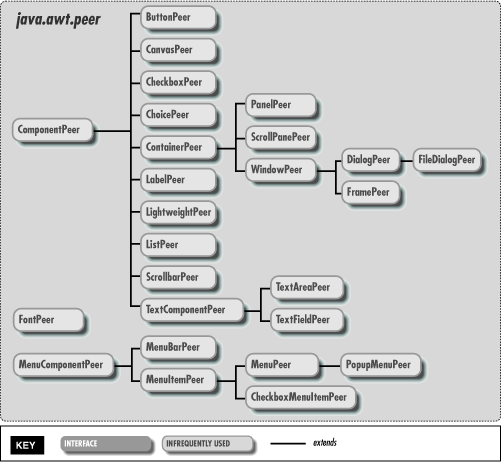

Figure 18.6: The java.awt.peer package

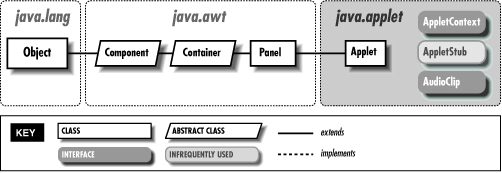

Figure 18.7: The java.applet package
