GridBagLayout

The GridBagLayout is the most complex and flexible of the standard layout managers. Although it sounds like it should be a subclass of GridLayout, it's a different animal entirely. With GridLayout, elements are arranged in a rectangular grid, and each element in the container is sized identically (where possible). With GridBagLayout, elements can have different sizes and can occupy multiple rows or columns. The position and behavior of each element is specified by an instance of the GridBagConstraints class. By properly constraining the elements, you can specify the number of rows and columns an element occupies, which element grows when additional screen real estate is available, and various other restrictions. The actual grid size is based upon the number of components within the GridBagLayout and the GridBagConstraints of those objects. For example, Figure 7.8 shows a GridBagLayout with seven components, arranged on a 3x3 grid. The maximum capacity of a screen using GridBagLayout in Java 1.0 is 128 x 128 cells; in Java 1.1, the maximum size is 512 x 512 cells.

Figure 7.8: GridBagLayout with seven components on a 3x3 grid

[Graphic: Figure 7-8]

With the other layout managers, adding a component to the container requires only a call to add(). In Java 1.0, the GridBagLayout also requires you to call setConstraints() to tell the layout manager how to position the component. With Java 1.1, you use the new add() method that permits you to pass the component and its constraints in a single method call (add(Component, Object)). If no components are added with constraints (thus all using the defaults), the GridBagLayout places the components in a single row at the center of the screen and sizes them to their getPreferredSize(). This is a nice way to place a single object in the center of the screen without stretching it to take up the available space, as BorderLayout does. Figure 7.9 compares the default GridBagLayout with a BorderLayout displaying the same object in the center region.

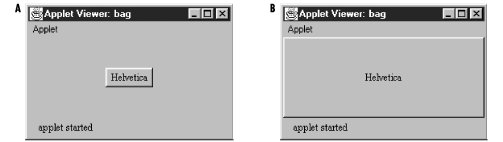

Figure 7.9: Centering a component: GridBagLayout vs. BorderLayout

[Graphic: Figure 7-9]

When designing a container that will use GridBagLayout, it is easiest to plan what you want on graph paper, and then determine how the constraints should be set. The alternative, adding the components to the layout and then tweaking the constraints until you have something you like, could lead to premature baldness. Seriously, a trial-and-error approach to getting the constraints right will certainly be frustrating and will probably fail. Figure 7.10, using the same GridBagLayout used in Figure 7.8, indicates how the layout manager counts cells. The partial code used to create the screen follows in Example 7.2.

Example 7.2: Creating a GridBagLayout

public void init() {
 Button b; GridBagLayout gb = new GridBagLayout(); GridBagConstraints gbc = new GridBagConstraints(); setLayout(gb); try {
 /* Row One - Three button */ b = new Button ("One"); addComponent (this, b, 0, 0, 1, 1, GridBagConstraints.NONE, GridBagConstraints.CENTER); b = new Button ("Two"); addComponent (this, b, 1, 0, 1, 1, GridBagConstraints.NONE, GridBagConstraints.CENTER); b = new Button ("Three"); addComponent (this, b, 2, 0, 1, 1, GridBagConstraints.NONE, GridBagConstraints.CENTER); /* Row Two - Two buttons */ b = new Button ("Four"); addComponent (this, b, 0, 1, 2, 1, GridBagConstraints.NONE, GridBagConstraints.CENTER); b = new Button ("Five"); addComponent (this, b, 2, 1, 1, 2, GridBagConstraints.NONE, GridBagConstraints.CENTER); /* Row Three - Two buttons */ b = new Button ("Six"); addComponent (this, b, 0, 2, 1, 1, GridBagConstraints.NONE, GridBagConstraints.CENTER); b = new Button ("Seven"); addComponent (this, b, 1, 2, 1, 1, GridBagConstraints.NONE, GridBagConstraints.CENTER);
}
catch (Exception e) {
 e.printStackTrace();
}
}

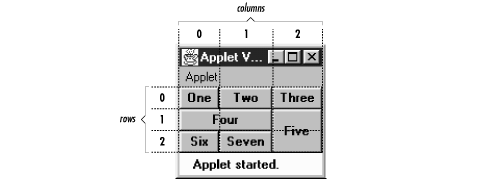

Figure 7.10: How GridBagLayout counts rows and columns

[Graphic: Figure 7-10]

Most of the work in Example 7.2 is done by the helper method addComponent(), which creates a set of constraints, applies them to a component, and adds the component to a container. The code for addComponent() appears in GridBagConstraints; its signature is:

public static void addComponent (Container container, Component component, int gridx, int gridy, int gridwidth, int gridheight, int fill, int anchor) throws AWTException ;

The top left cell in the layout has location (0,0). There's nothing very surprising about buttons one, two, three, six, and seven. They occupy a 1x1 area on the layout's 3x3 grid. Button four occupies a 2x1 area; it is placed at location (0,1), and thus occupies this cell plus the cell at (1,1). Likewise, button five occupies a 1x2 area, and takes up the cells at (2,1) and (2,2). The total size of the layout is determined entirely by the components that are placed in it and their constraints.

GridBagLayout Methods

Variables

There are a handful of instance variables for GridBagLayout. They are not initialized until the container whose layout is GridBagLayout has been validated.

Constructors LayoutManager methods LayoutManager2 methods Constraints Layout Miscellaneous methods
